YS-XZ6-180A 旋轉給袋式包裝機

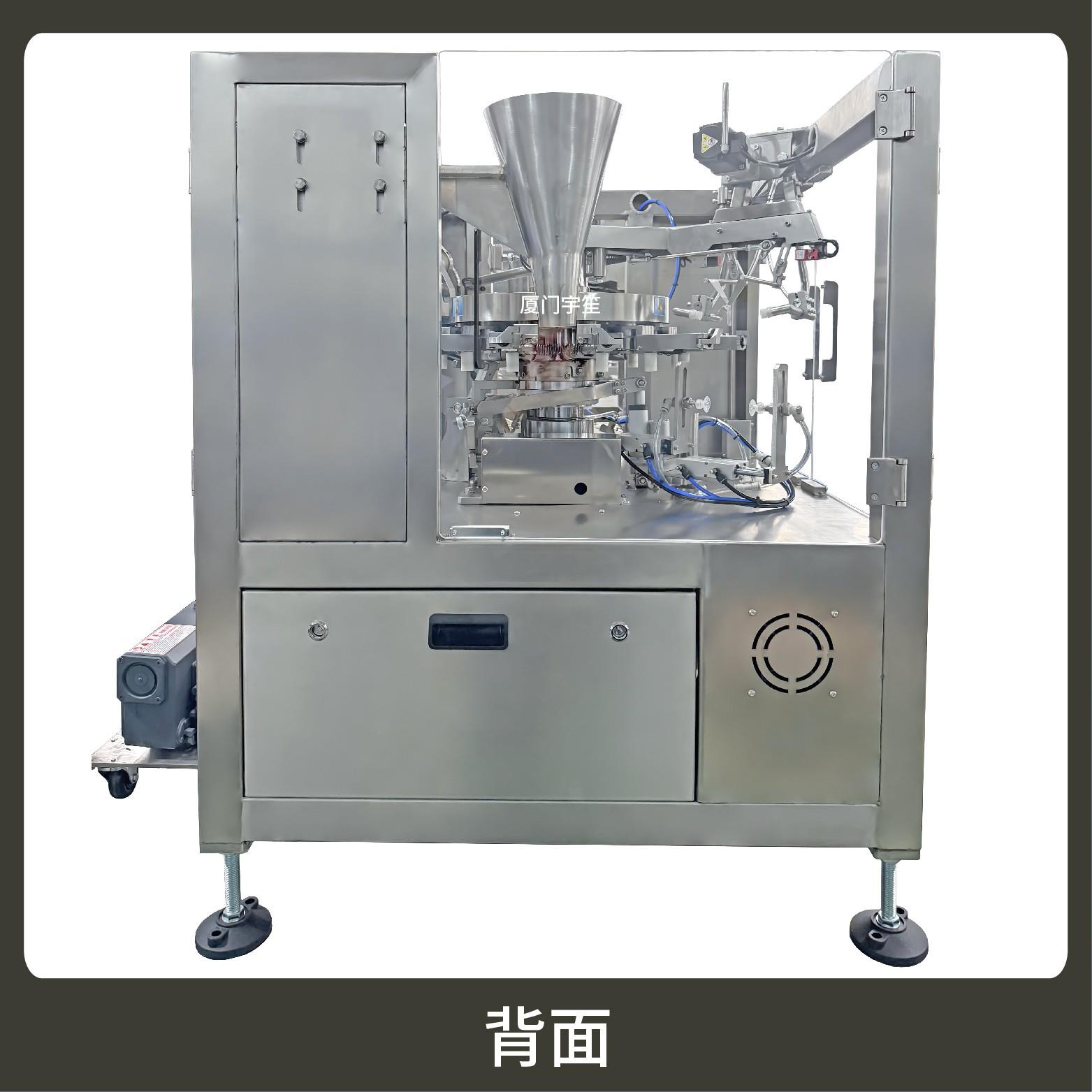

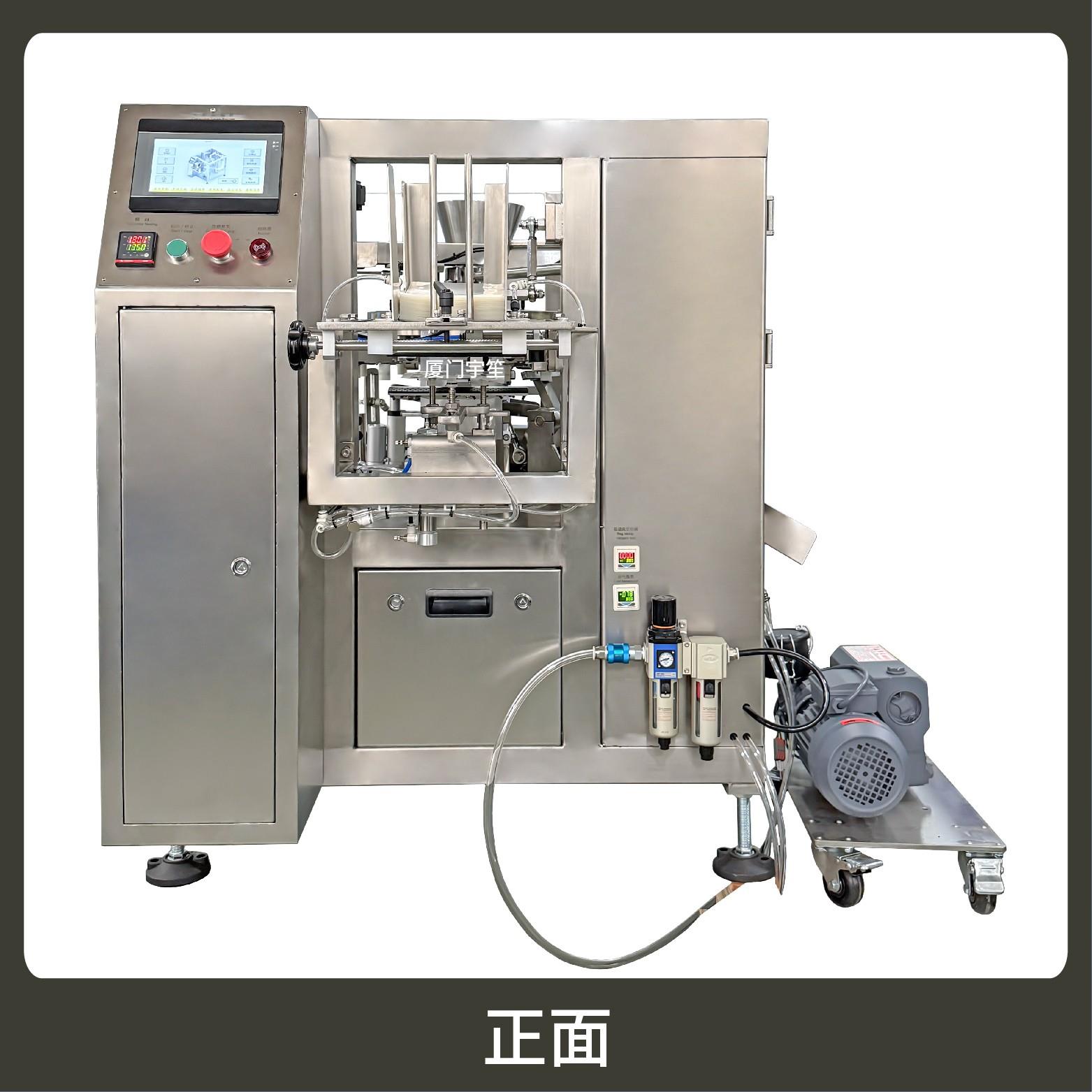

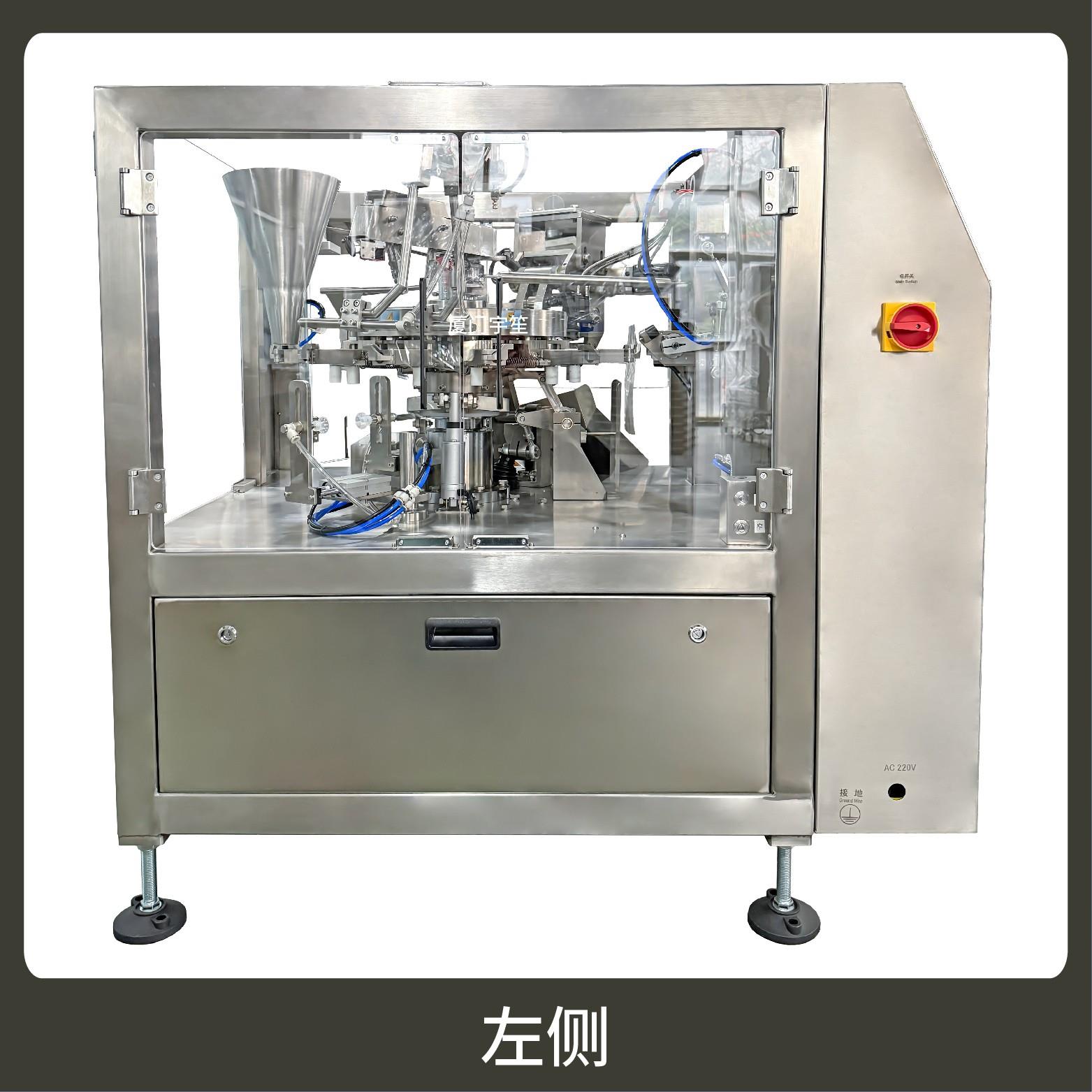

Rotary Pre-made Bag Packaging Machine
YS-XZ6-180A 旋轉給袋機
特 點 Characteristic
1、可適配不同規格、材質的預制袋（如自立袋、拉鏈袋、常規袋等），通過簡單調整即可切換袋型，速度快、效率高，穩定性好；支持顆粒、粉末、液體、醬料、塊狀等多形態物料包裝。
Suitable for various pre-made bags (stand-up pouch, zipper bag, flat bag, etc.). Easy adjustment, fast changeover, high efficiency and stable performance. Ideal for granules, powder, liquid, paste and solid products.
2、全伺服控制系統調速技術確保動作精準、運行平穩；配備空袋監測、不開袋不封口等安全機制，避免物料浪費和包裝失敗。
Full servo control for precise and stable operation. Equipped with empty bag detection and no-bag no-filling function to reduce waste.
3、設備采用間歇式旋轉平臺，多個工位（如取袋、開袋、灌裝、封口）沿圓周分布，通過旋轉實現工序的連續銜接，結構緊湊，節省空間，且能高效處理高流量包裝需求。
The machine adopts an intermittent rotating platform with multiple stations (bag feeding, bag opening, filling, sealing, etc.) distributed circularly. Continuous process connection is realized by rotation, with compact structure, space saving, and high efficiency for high-volume packaging requirements.
4、包裝材料：復合膜，如：純鋁，鍍鋁等預制袋。
Packing material: composite film, such as: pure aluminum, aluminum plating and other prefabricated bags.
封口方式 Sealing Type
預制袋Prefab bag
技術參數
Technical Parameters
計量范圍：10-1000g（視物料特性而定）
Measuring Scope
預制袋尺寸：長( L ) : 100-240mm
Bag Size 寬( W ) : 80-180mm
包裝速度：20-60bags/min（視物料特性而定）
Packing Speed
外型尺寸：1019 * 1364 * 1138mm
Dimension ( L * W * H )
整機重量：約350kg
Weight
總 功 率：220V / 50-60Hz / 4.5kw
Total Power
